OUR PRODUCTS
FIVE TYPES OF RADIATORS
Every radiator is precision-manufactured using advanced tooling and subjected to rigorous quality testing before dispatch.

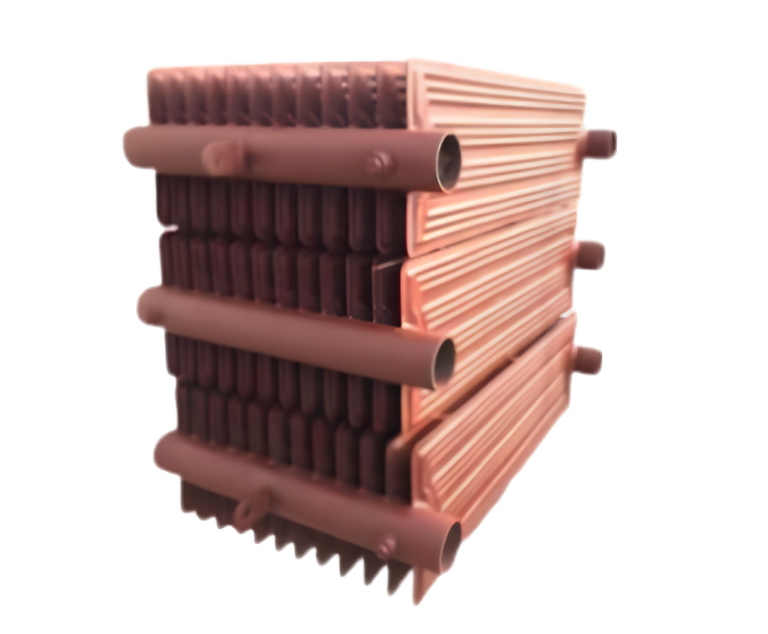

WELDED TYPE RADIATORS
The most widely used configuration for standard power transformers. Fully welded construction ensures zero leakage and maximum structural integrity under high-pressure operation.
Zero-leakage design
High pressure rated
Most popular
FLANGED TYPE RADIATORS
Designed for easy installation and maintenance. Flanged connections allow bolt-on mounting to transformer tanks, simplifying field replacement and servicing.
Easy installation
Bolt-on mounting
Maintainable
GOOSE NECK TYPE RADIATORS
Featuring a curved neck pipe configuration that provides superior oil-flow characteristics and improved natural convection cooling for high-capacity transformers.
Superior oil flow
Natural convection
High capacity
RADIATORS WITH MULTIPLE OUTLETS
Configured with multiple outlet ports for transformer designs requiring distributed oil-flow return paths. Ideal for large-format and heavy-duty power transformers.
Multi-outlet ports
Distributed flow
Heavy-duty
RADIATORS WITH MULTIPLE INLETS
Multi-inlet design for transformer applications requiring multiple oil-feed points. Enables even distribution of hot oil across the radiator bank for maximum cooling efficiency.
Multi-inlet ports
Even distribution
Max efficiency
PRODUCT SPECIFICATIONS
ENGINEERING DIMENSIONS
Precise specifications for every standard configuration. All dimensions customisable per client drawings.
PIPE SPECIFICATIONS
Radiator Width | Pipe Diameter | Wall Thickness |
|---|---|---|
520 mm | Ø 88 mm | 3 mm |
300 mm | Ø 76 mm | 3 mm |
226 mm | Ø 76 mm | 3 mm |
FINS SPECIFICATIONS
PARAMETER | VALUES AVAILABLE | NOTES |
|---|---|---|
Length Increment | 100 mm steps | Or custom |
Length Range | 400 – 2000 mm | Adjustable |
Radiator Width | 226 / 300 / 520 mm | 3 options |
SURFACE TREATMENT
MATERIAL & COATING
Corrosion-Resistant Primer
Extends radiator service life significantly in outdoor and humid transformer installations.
Heat-Conductive Varnish
High-grade varnish applied to fins enhances thermal conductivity and maximises cooling efficiency.
Pressed Steel Construction
Cold-rolled steel with precision press tooling ensures consistent fin geometry and tight tolerances.
